Relay Testing

Group Members: Kevin Mitra and Nagi Obeid

Date Published: March 16, 2021





Server Communication Test

Number of test runs

Total: 7



Number of test successful results

4 test runs on the server connected with client and with another user joining the chat.



Number of test unsuccessful results

Total unsuccessful runs: 3



Screenshot of Relay Test Results

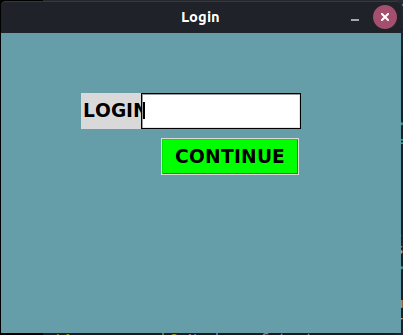

Connecting to server

Relay Test

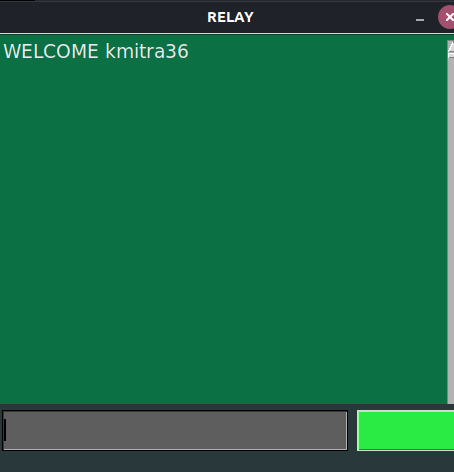

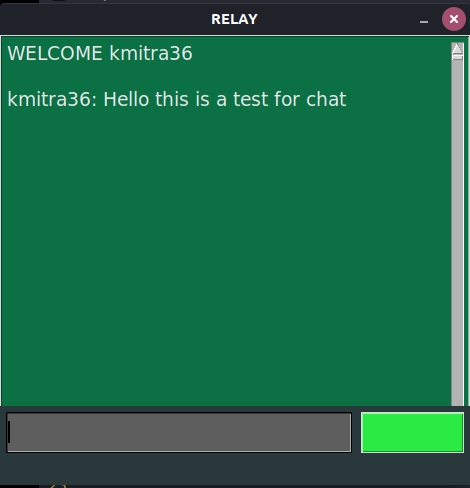

Testing Chat Window

Relay Test2 Relay Test3

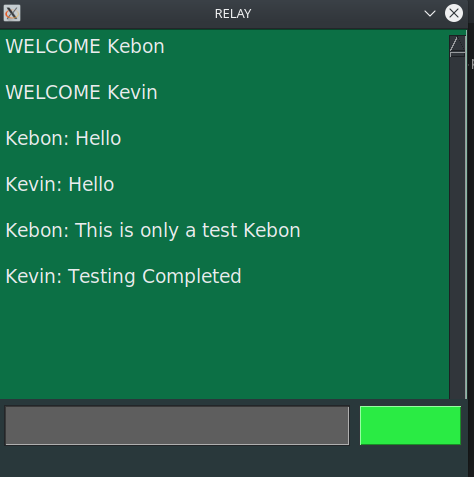

Testing with another client

Relay Test4 Relay Test5

The user has to connect to the server to chat with other users as the client. The user has to input the name and connect with it to send messages.


Failure Test


Server and Client Failure

The client part will connect to the server for communication

The client is connected to the server, therefore, it had a issue of leaving the chat causing the application to fail.

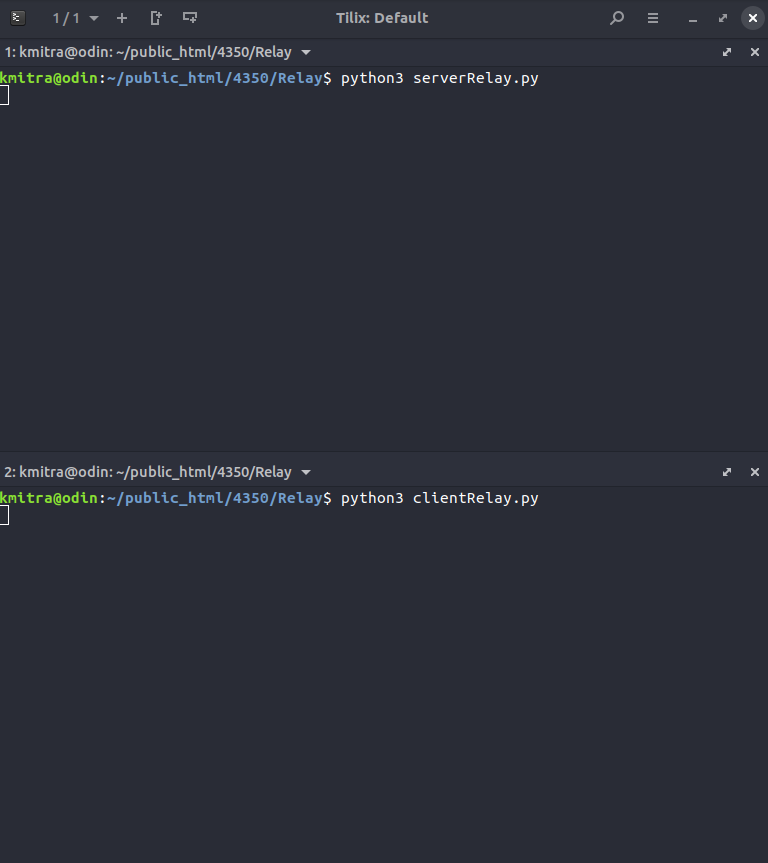

Relay Test Failure

The client user connected to the server cause the failure disconnecting after leaving the chat when testing with tkinter.
