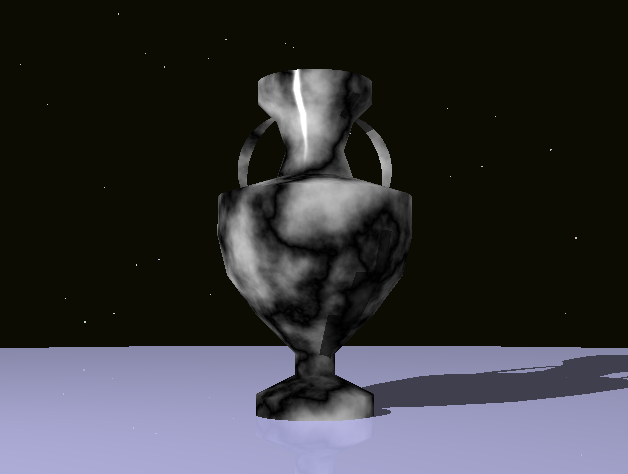

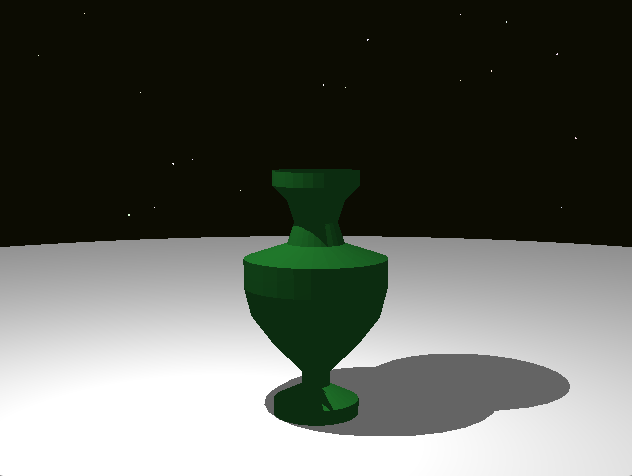

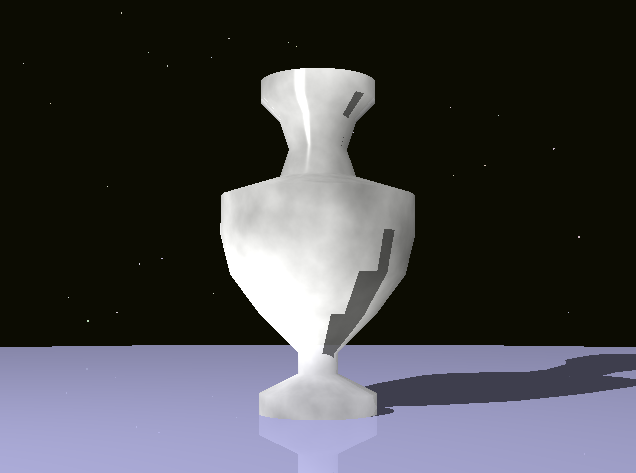

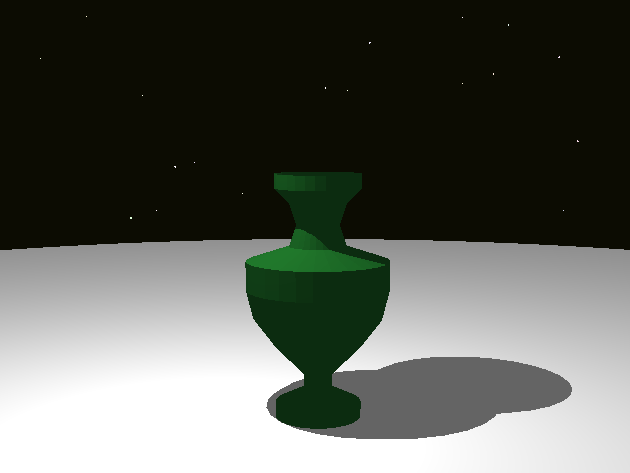

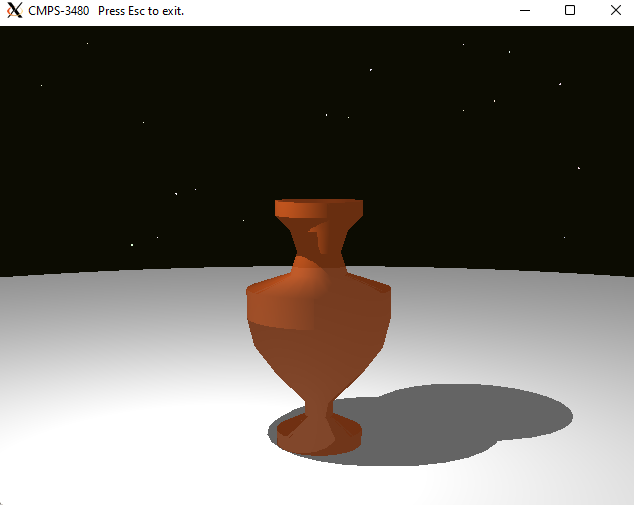

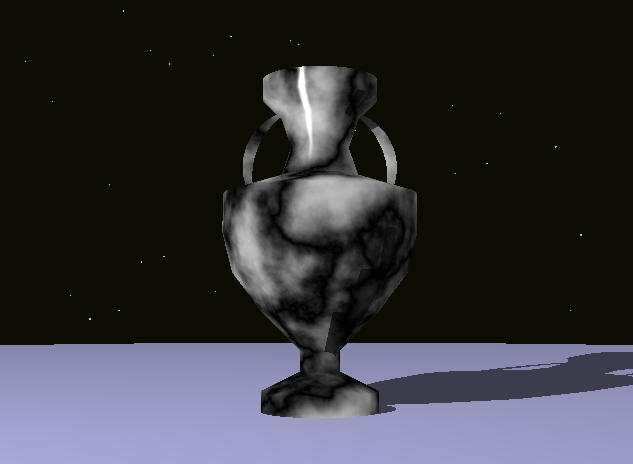

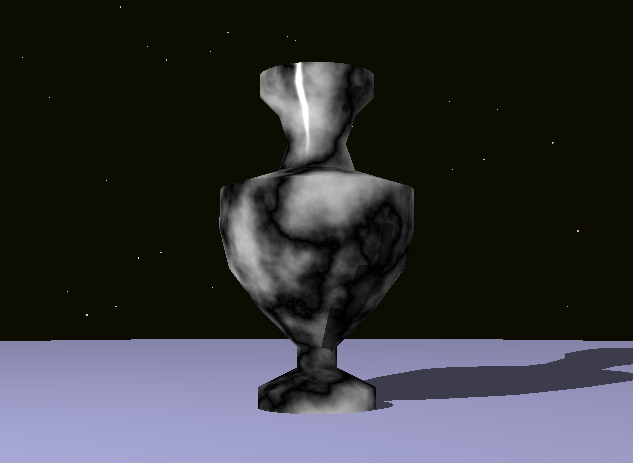

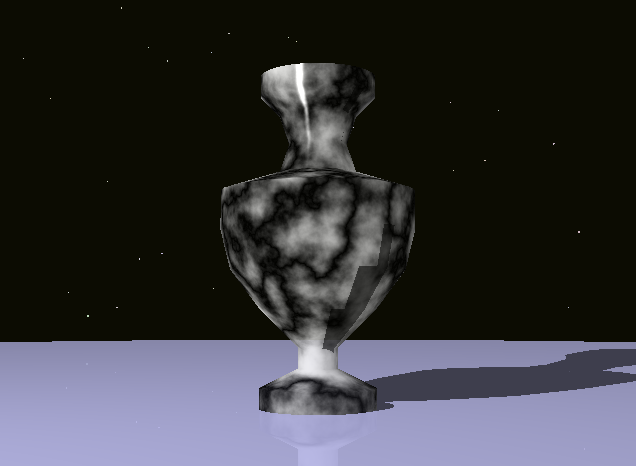

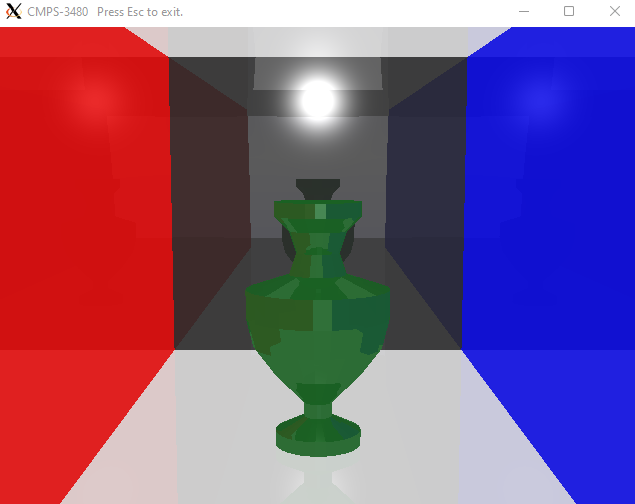

Matthew Taylor -------------------------------- Project Assignment -------------------------------- Project Requirements: 1. Idea: Perlin vase with added handles, phong shading, and marble texture. 2. Framework: Lab 10 3. Title: Perlin Vase w/ Phong Shading 4. Image Goal: - Will be on a floor, with starry background like lab 10 as well. 5. Computer Graphics Elements: - Stacked Triangle Mesh Vase - Handles made with clipped ring (disc w/cut-out circle) - Procedural Checker Textured disc for floor - Randomized discs for stars in background - Phong shading - 3D Marble texture from perlin noise - Default shadows already in lab 10 6. Project Begin PROJECT PROGRESS UPDATE 1: Created first version of Cornell Box with specular lighting and vase inside. Will change environment to stars due to no cornell box allowed. 7. Continuing Project PROJECT PROGRESS UPDATE 2: Removed Cornell Box, added black background and stars. Changed position of lighting. Phong Shading will be attempted next. PROJECT PROGRESS UPDATE 3: Tried implementing phong shading code on lab 13 page. PROJECT PROGRESS UPDATE 4: Implementation of in-class phong shading code, with changes to vertNorm points. PROJECT PROGRESS UPDATE 5: Phong-shading with odd self-shadowing, 3D perlin noise, specular highlight. PROJECT PROGRESS UPDATE 6: Phong-shading still with self-shadowing, 3D perlin noise with procedural marble texture, specular highlight. PROJECT PROGRESS UPDATE 7: Reduced procedural marble texture, Removed non blinn-phong specular code from vase. PROJECT PROGRESS UPDATE 8: Added two clipped discs, one for each handle. PROJECT PROGRESS UPDATE 9: Fixed specular reflection of floor, migrated project to project folder. -------------------------------- Non-Project Related Assignments -------------------------------- Lab 9/10 Animated Gif Perlin sphere moving over checkered floor w/unintended but cool effect Image size: 440,430 bytes Lab 6 Animated Gif Image size: 83,112 bytes Bresenham line Screenshot of lab-2 lines Image size: 78,340 bytes This is a rotated selfie dog. Image size: 41,902 bytes Image size: 27,783 bytes Lab 4 Completed Image size: 81,786 bytes Image size: 27,360 Bytes Face Texture on a Cylinder Image size: 27,032 bytes
